A Process Filtration No-Brainer: Schroeder Strainers
Comments Off on A Process Filtration No-Brainer: Schroeder Strainers
Schroeder Industries is rounding out our Process Filtration catalog with a comprehensive selection of mechanical strainers!
Mechanical strainers are commonly used in tandem with other process filters, or as an economical stand-alone filtration option for capturing larger particles.
Schroeder Industries recently added a series of mechanical basket strainers and Y-strainers to our process filtration lineup.
With a variety of materials and connection options, there is something for virtually every process application in need of a mechanical strainer!
Which type of mechanical strainer are you looking for?
Cast Basket
Threaded
Cast Basket
Flanged
Fabricated Basket
Flanged
Cast Y Strainer
Threaded – Cast Iron
Cast Y Strainer
Threaded – Bronze
Cast Y Strainer
Threaded – Steel
Cast Y Strainer
Flanged – Cast Iron
Cast Y Strainer
Flanged – Carbon Steel/Stainless
Fabricated Y Strainer
Flanged – Stainless Steel
Fabricated Y Strainer
Flanged – Carbon Steel
Duplex Cast Basket Strainer
Threaded/Flanged
Duplex Fabricated Basket Strainer
Threaded/Flanged
Ask our experts about these process filtration solutions and more!
Request for Quote
Advanced Coalescing Filtration, Now In Duplex: GHCFD
Comments Off on Advanced Coalescing Filtration, Now In Duplex: GHCFD
Coalescing Filtration is Critical
Diesel fuel is exposed to water contamination at every stage, from transfer, to storage, and filling.
Coalescing filters are critical for protecting diesel systems from microbial diesel bug and corrosion, not to mention enabling efficient combustion of the fuel itself! If not controlled, water contamination can cause expensive damage and potentially dangerous failures.
Schroeder Industries first developed the GeoSeal® High-Flow Coalescing Filter (GHCF), a landmark in coalescing filtration. This compact filter is engineered for exceptional particulate and water removal for both onboard applications and in bulk fuel filtration.

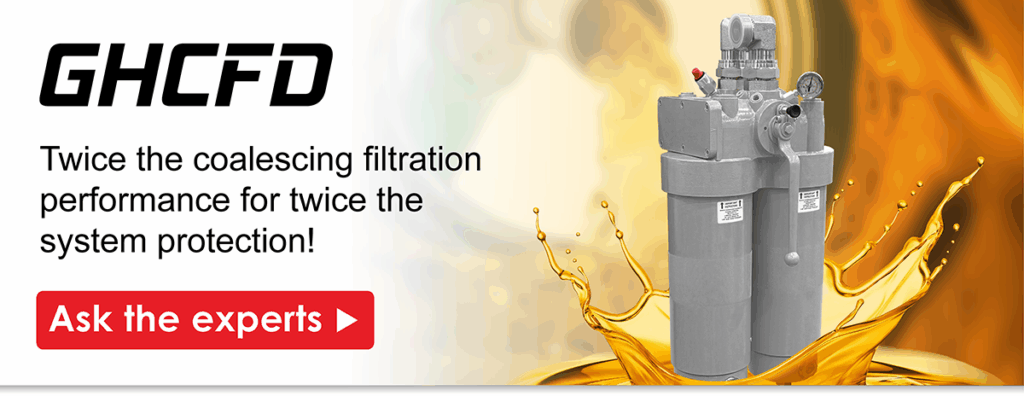

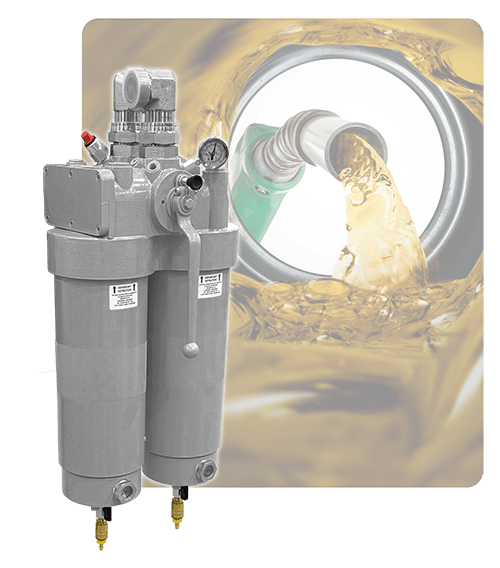

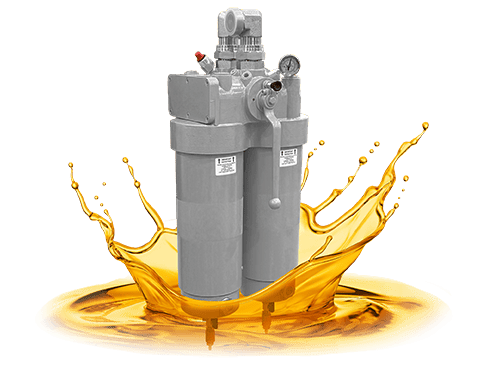

Now, the power of the GHCF is available in a duplex housing option! Introducing: The GHCFD.
Twice The Filtration, Double The Protection
Combining two GHCFs in tandem creates a powerful diesel fuel filtration solution that virtually eliminates filter maintenance downtime while providing the same first-rate particulate and water removal.
Exceptional, duplex coalescing filtration powered by GHCF technology!
Want to know if the GHCFD is right for your applications? Talk to our Fuel Filtration experts!
| Flow Rating (Suction Installations): | Up to 1,800 gph (Up to 6,800 L/hr) in center valve position, 900 gph (3,410 L/hr) in the left/right valve position. |
| Flow Rating (Pressure Installations): | Up to 50 gpm (189 L/min) in center valve position, Up to 25 gpm (95 L/min) in the left/right valve position. |
| Max. Operating Pressure: | 150 psi (10.3 bar) |
| Min. Yield Pressure: | 1650 psi (65 bar) |
| Operating Temperature Range: | -20° F to 225° F (-29° C to 107° C) |
| Bypass Setting: | Blocked for Suction Installations, 40 PSI (2.8 bar) for pressure side installations. |
| Materials of Construction: | Filter Assembly: Anodized Aluminum Valve: Stainless Steel Sealing Material: FKM & PTFE |
| Weight: | 54.3 lbs. (24.6 kg.) |
| Element Change Clearance: | 4.5 inches (114 mm) |
